Zev Electric Motorbike


Check out a more recent review of Zev Electric Motorcycles here.
Z ELECTRIC Motorbike has incorporated its new “Electronic Transmission” into all of its high power electric motor scooters.

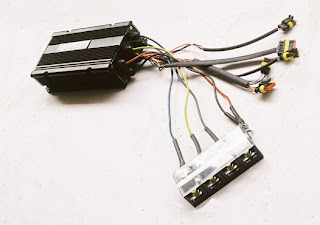

The Electronic Transmission is a special form of electronic controller for the high power ZEV scooters that allows the rider to independently vary both the voltage and the amperage of the current sent to the hub motors at the same time. This allows the rider to obtain the maximum range by keeping the power consumption as low as possible at any given speed or load. The Electronic Transmission allows the rider to “shift” so that just like a mechanical transmission, the rider can shift to a high rpm (high voltage), low torque (low amp) setting for cruising, or a high voltage, high amp setting for high loads and hills or maximum speed. The throttle controls the voltage; the Electronic Transmission shift button controls the amperage setting. Each touch of the button reduces amps by 20 (always leaving 20 at the bottom level). As an example - the 100 amp X 72 volts maximum power controller would have 100, 80, 60, 40, and 20 amp settings.

To make sure that the new controllers would stand the rigors of the high power bikes, the controllers were tested in a hot box where they were ran at full power, full load for 48 hours at 115 degrees F/45 degrees C ambient air without shut down. Given that the actual installation on the bikes allows for air flow over the deep cooling fins, the test was a bit of overkill.

The ZEV line of electric motor scooters are the fastest and the longest range electric scooters in the world at this time – with the help of the energy saving Electronic Transmission. In operation the rider has a shift button next to the throttle. Once the rider reaches the desired speed, he can touch the button to “shift” down the amp flow, reducing torque, until the bike will only pull the speed desired by the rider. Additionally, regenerative braking is built into all ZEV controllers and bikes so that the bike recharges the battery during braking as it switches the motor into generator mode. Regenerative braking is of little help on flat land or where the brake is seldom used. However, in very hilly and curvy terrain it is of great help, extending the range 15% to 18% depending upon the bike/road/load/speeds. With the maximum battery capacity in excess of 5.5 Kwh on some models and the help of the Electronic Transmission, the bikes range in the largest battery capacity has reached 160 Km/100 miles in testing. That same bike can exceed 120 kph / 75 mph.

You can see more details of the system and the various models at All ZEV bikes qualify for the 10% Federal tax credit for electric bikes. Made in the USA

1 comment:

MisYahd said...

How long can it run under a normal speed. Let's say, 30kph, will it last for about 16hours or more?
